| ชื่อแบรนด์: | TGFQ |
| หมายเลขรุ่น: | E307C 307C E308C 308C |
| ขั้นต่ำ: | 1 |
| ราคา: | 200.00-800.00USD |
| รายละเอียดบรรจุภัณฑ์: | NNER PACKING: Wrap by plastic film, clear label for each item. NNER PACKING: ห่อด้วยฟิล์มพ |
| เงื่อนไขการชำระเงิน: | L/C, T/T, D/P, D/A |
| ตำแหน่ง | หมายเลขอะไหล่ | จำนวน | ชื่ออะไหล่ |
|---|---|---|---|
| 1 | 095-9805 M | [4] | BOLT-SOCKET HEAD (M14X2X40-MM) |

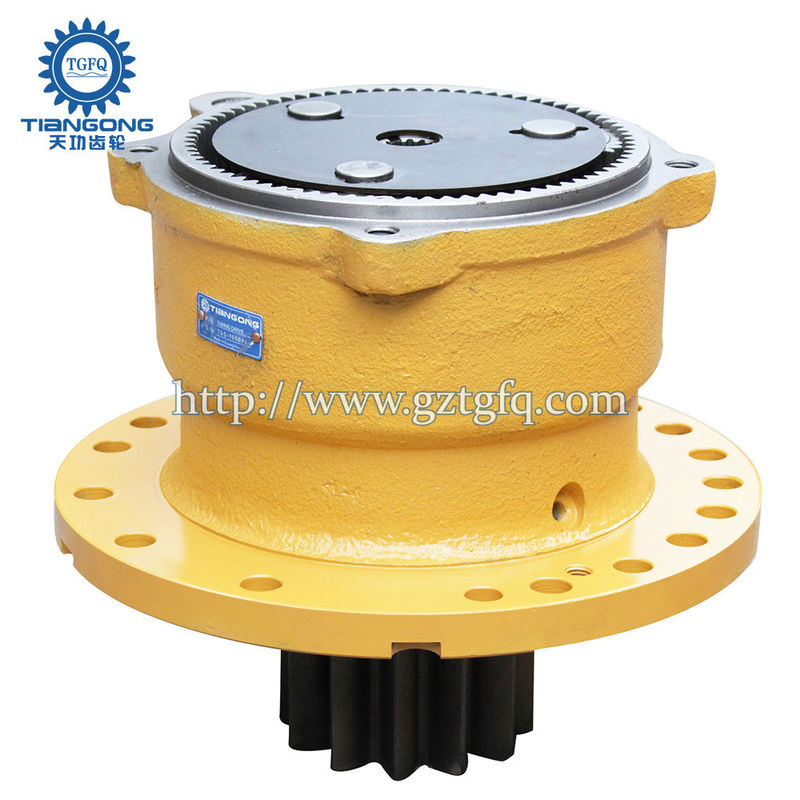

| 2 | 185-0360 Y | [1] | MOTOR GP-SWING |
| 3 | 171-9446 B | [1] | PLATE |
| 4 | 171-9447 B | [1] | PLATE |
| 5 | 171-9448 B | [1] | PLATE |
| 6 | 095-1590 | [1] | SEAL-O-RING |
| 7 | 139-7308 | [2] | PLUG |
| 8 | 095-1575 | [2] | SEAL-O-RING |
| 9 | 171-9449 | [1] | GEAR |
| 10 | 171-9454 | [4] | BEARING |
| 11 | 171-9441 | [4] | GEAR-PLANETARY |
| 12 | 171-9440 | [4] | WASHER (36X58.5X2-MM THK) |
| 13 | 171-9453 | [4] | RACE |
| 14 | 171-9439 | [1] | CARRIER |
| 15 | 171-9473 | [1] | HOUSING AS |
| 16 | 171-9451 | [1] | SEAL |
| 17 | 171-9438 | [1] | COLLAR |
| 18 | 171-9456 | [1] | GEAR |
| 19 | 171-9457 | [1] | RING-RETAINING |
| 20 | 171-9455 M | [4] | SCREW (8X1.25X16-MM) |
| 21 | 171-9442 | [1] | PLATE |
| 22 | 171-9443 | [1] | CARRIER |
| 23 | 150-0814 | [3] | WASHER |
| 24 | 099-7076 | [1] | SEAL-O-RING |
| 25 | 171-9445 | [3] | GEAR |
| 26 | 150-0812 | [3] | BEARING AS-NEEDLE |
| 27 | 150-0813 | [3] | RACE-INNER |
